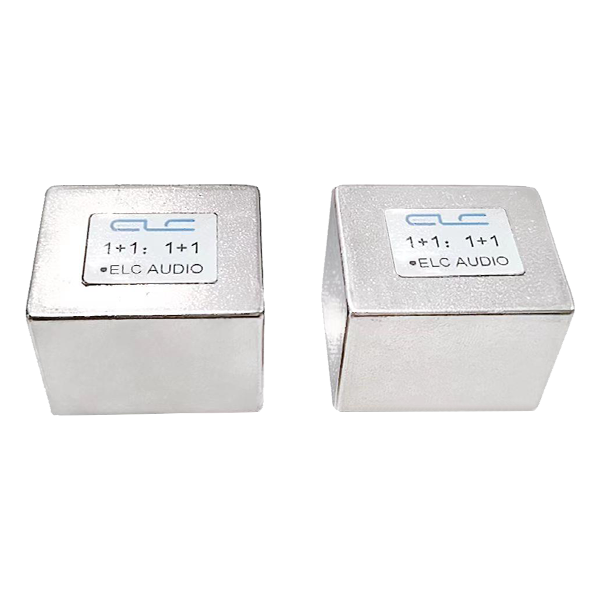

1+1 : 1+1 Permalloy Audio Transformer

1 + 1 : 1 + 1 Audio Isolation Transformer

Features:

Flexible, with many different connection alternatives possible.

Medium signal level capability.

Excellent magnetic and electrostatic shielding.


Dimension(mm):

    1662439283188                                     1662436346293_副本




Electric Schematic:


1662436397421_副本



Electrical Parameters:

Turns ratio: 1-3 + 2-4 : 8-6 +7-5 = 1 : 1
DCR(Pin1 to Pin3):  41 OHM
DCR(Pin2 to Pin4): 41 OHM
DCR(Pin8 to Pin6):60 OHM
DCR(Pin7 to Pin5):60 OHM
Inductance(Pin1 to Pin3): 5H
Inductance(Pin2 to Pin4):  5H
Inductance(Pin8 to Pin6):5H
Inductance(Pin7 to Pin5):  5H
Impendance: 2400Ω : 2400Ω
Frequency response: 20Hz-20kHz 2dB
Hi-pot:1000VAC, 1mA  2SEC
