Equivalent to Jensen JT-11-FLPCH

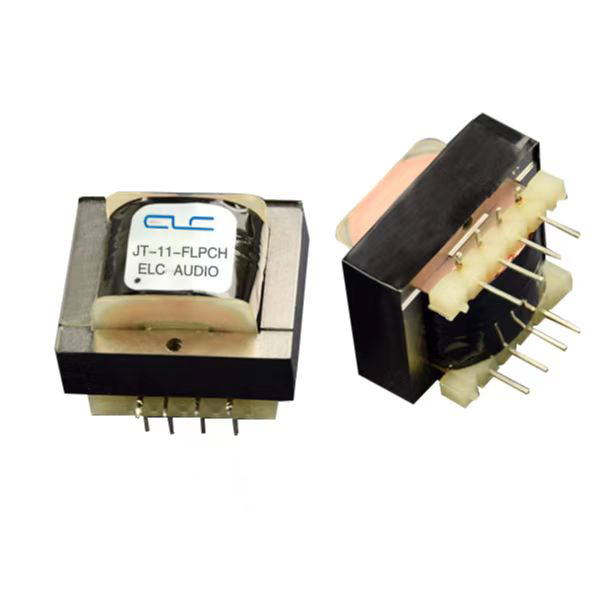

Line Output Transformer ELC JT-11-FLPCH

Features:

This transformer is designed for high performance line output stages.

Excellent time domain performance.

Driving signals should be free of DC and source impedance kept as low as possible.

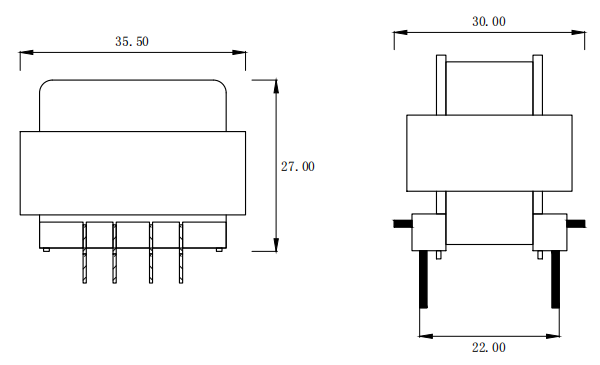

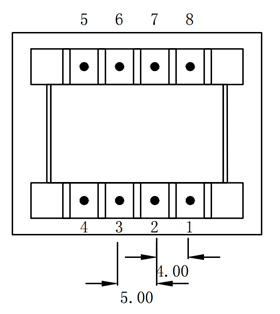

Dimension(mm):

1662436934303        1662436969743_副本

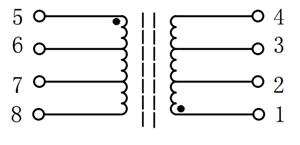

Electric Schematic:


1662437036976_副本



Electrical Parameters:

Turns ratio:1 : 1
DCR (Pin1 to Pin4):63 OHM
DCR (Pin5 to Pin8): 63 OHM
DCR (Pin1 to Pin8): 0 OHM REF
DCR (Pin4 to Pin5):0 OHM REF
Inductance(Pin1 to Pin4):6.2H
Inductance(Pin5 to Pin8):6.2H
Inductance(Pin1 to Pin8):4.45H
Inductance(Pin4 to Pin5): 4.45H
Frequency response:  20Hz-20kHz   -0.03dB
Hi-Pot: 500VAC  5mA  1Sec.
