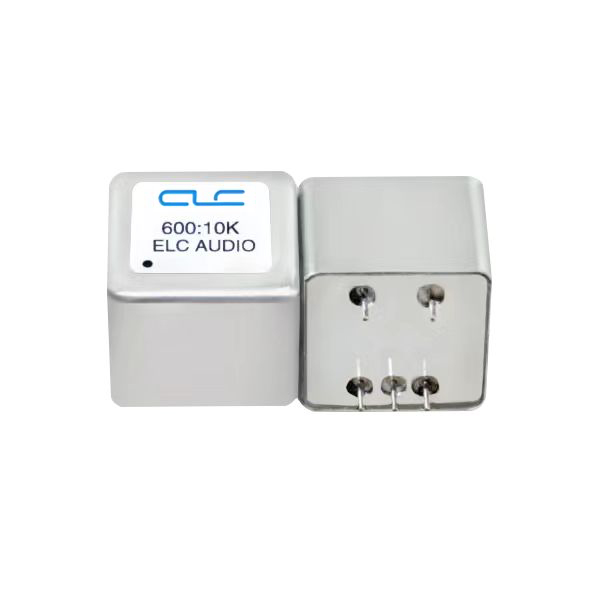

600:10K Permalloy Isolation transformer

Permalloy 600: 10K Audio Isolation Transformer For Audio and Microphone

Features:

Flexible, with many different connection alternatives possible.

Excellent magnetic and electrostatic shielding.

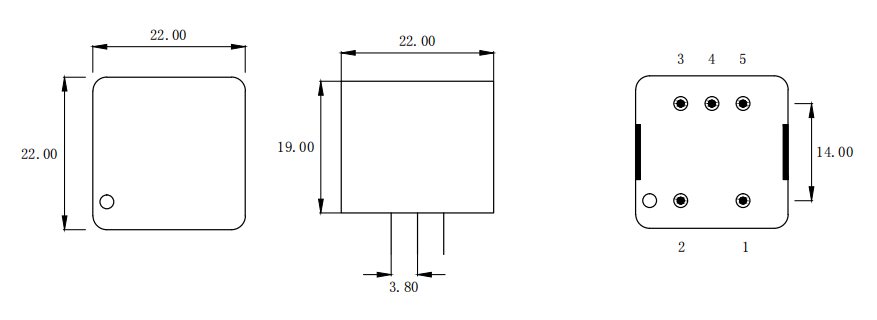

Dimension(mm):

1662522176892

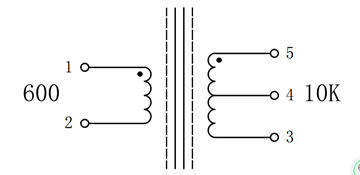

Electric Schematic:


1662519217036_副本




Electrical Parameters:

Static resistance of primary:200 OHM
Static resistance of secondary:800 OHM
Primary inductance:2.8H
Secondary inductance:35H
Frequency response:  20Hz-20kHz -0.5dB
Hi-pot:     1000VAC, 1mA  2SEC
