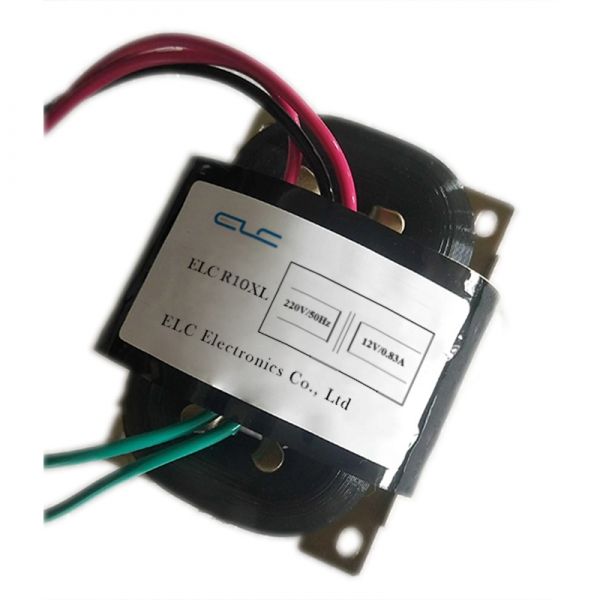

R Type Transformers R10XL
Features:
Conform to UL Safety Standards and ROHS Standards.
Small and light, beautiful process, low magnetic flux leakage, small excitation current.
High efficiency, low temperature rise, low loss, high balance, no noise.
Rated Power: 5VA to 3000VA.
Rated Frequency: 50/60Hz.
Insulation Class: Class B , can be designed Class H.
Custom designs available.
Electrical Parameters:
| Part Number | Power | Dimension | Weight(KG) | Pitch(mm) | |
| A(mm) | X(mm) | ||||
| R10XL | 10VA | 74 | 35 | 0.38 | 68*50 |
| Primary Input Voltage | 220V | ||||
| Primary Direct Current Resistance | 210Ω | ||||
| Primary No-load Current(Max) | 5mA | ||||
| Secondary Output No-load Voltage | S1: 3~4 0~12V | ||||
| Secondary Output Load Voltage | S1: 3~4 0~10.6V | ||||
| Secondary Output Load Current | S1: 3~4 0.83A | ||||

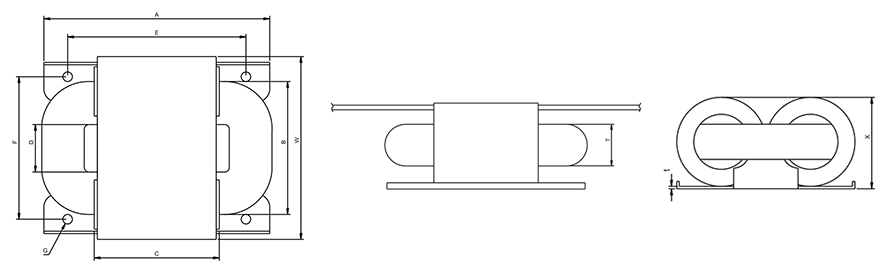

Outline Dimensions:

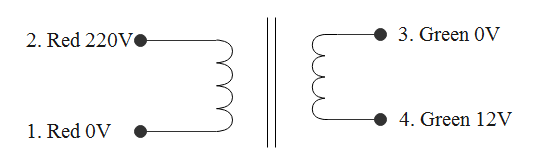

Electrical Schematic:
