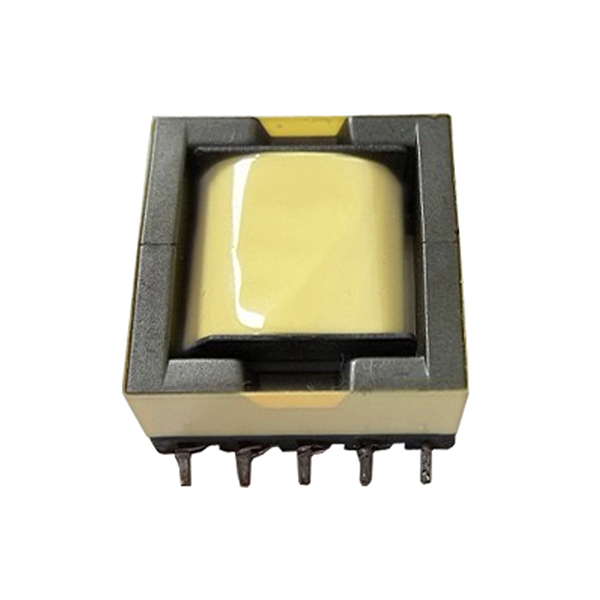

High Frequency Transformers EFD Series
Features:
High power density and high efficiency.
Multiple-output is available.
Low height solution.
Operating frequency up to 500KHz.
Operating temperature: -40℃-125℃
Custom designs available.
Electrical Parameters:
| Part No. | A(Max.) | B(Max.) | C(Max.) | D(Nom.) | E(Nom.) | F(Nom.) | FSW(KHz) | Power(W) |
| EFD-01 | 16.0mm | 17.2mm | 9.0mm | 3.75mm | 13.75mm | Ф0.6 | 100 | 10-15 |
| EFD-02 | 21.5mm | 21.5mm | 11.5mm | 5.0mm | 17.5mm | Ф0.6 | 100 | 20-30 |
| EFD-03 | 21.5mm | 21.5mm | 11.5mm | 3.75mm | 17.5mm | Ф0.6 | 100 | 20-30 |
| EFD-04 | 26.0mm | 27.0mm | 16.0mm | 5.0mm | 22.5mm | Ф0.8 | 100 | 30-60 |
| EFD-05 | 31.0mm | 32.2mm | 17.5mm | 5.0mm | 27.5mm | Ф0.8 | 100 | 50-100 |

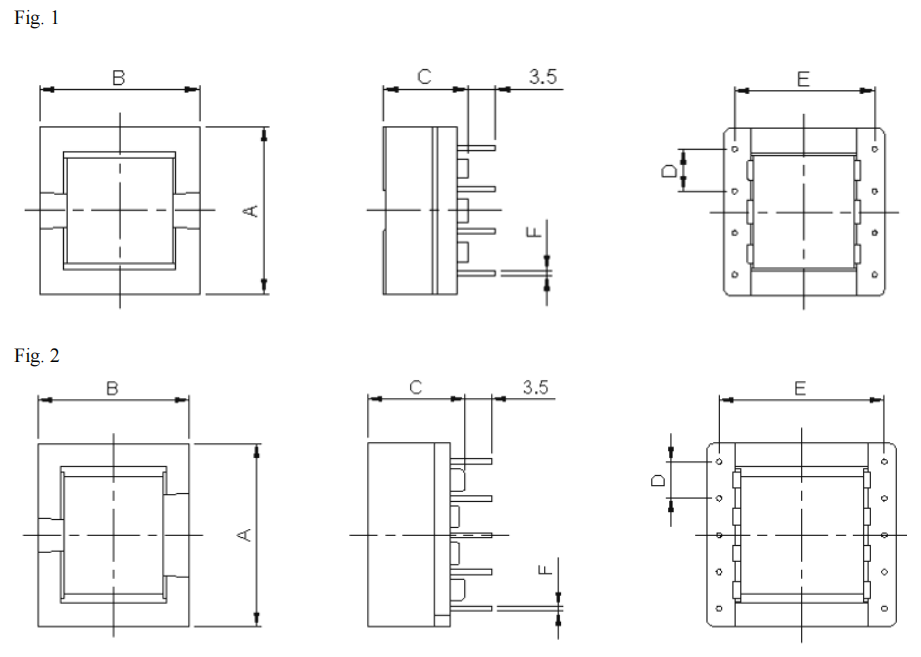

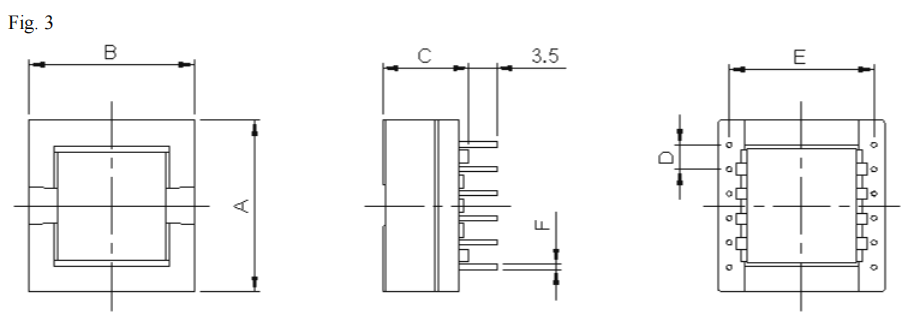

Outline Dimensions:
