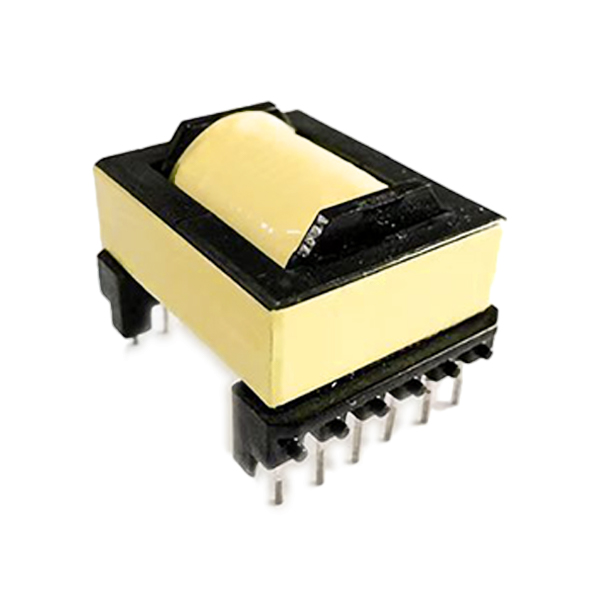

High Frequency Transformers ER Series
Features:
High power density and high efficiency.
Multiple-output is available.
Operating frequency up to 500KHz.
Power up to 5KW.
Operating temperature: -40℃-125℃
Custom designs available.
Electrical Parameters:
| Part Number | A(Max.) | B(Max.) | C(Max.) | D(Nom.) | E(Nom.) | F(Nom.) | FSW(KHz) | Power(W) |
| ER-2801 | 29.5mm | 25.0mm | 22.5mm | 5.0mm | 17.5mm | Ф0.8 | 100 | 30-50 |
| ER-2802 | 29.5mm | 25.0mm | 32.0mm | 5.0mm | 17.5mm | Ф0.8 | 100 | 40-60 |
| ER-2803 | 31.5mm | 28.5mm | 37.5mm | 5.0mm | 20.0mm | Ф0.8 | 100 | 40-80 |
| ER-3501 | 36.5mm | 30.0mm | 38.0mm | 5.0mm | 22.5mm | Ф1.0 | 100 | 200-400 |
| ER-3502 | 36.5mm | 30.0mm | 45.0mm | 5.0mm | 22.5mm | Ф1.0 | 100 | 200-500 |
| ER-39 | 41.0mm | 34.0mm | 46.0mm | 5.0mm | 25.2mm | Ф1.0 | 100 | 400-800 |
| ER-42 | 44.0mm | 32.0mm | 49.5mm | 5.0mm | 25.0mm | Ф1.0 | 100 | 500-1000 |
| ER-49 | 51.5mm | 38.5mm | 57.5mm | 5.0mm | 27.5mm | Ф1.0 | 100 | 1000-2000 |
| ER-53 | 56.0mm | 41.5mm | 51.5mm | 5.0mm | 62.5mm | Ф1.0 | 100 | 3000-5000 |

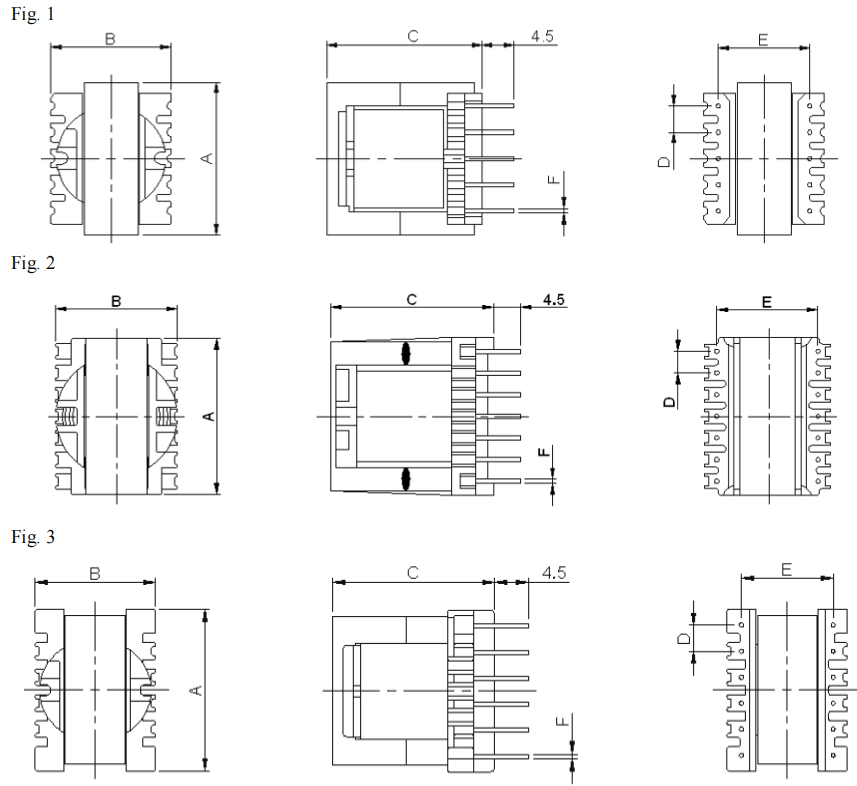

Outline Dimensions:
