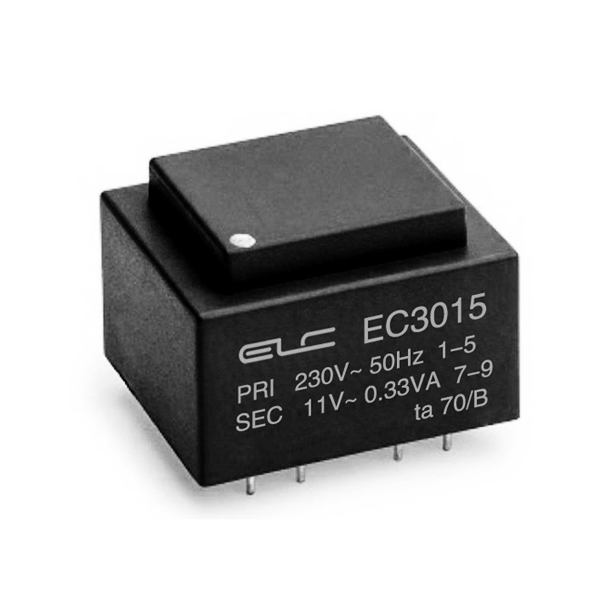

Encapsulated Transformer EC30
Features:
Conform to UL/CE Safety Standards.
Temperature Class: B(130℃), can be designed Class H(180℃).
Ambient Temperature: 40℃ or 70℃.
Vacuum Potting.
Material Flammability Classification UL94V-0.
Dielectric Strength 4200Vrms.
Operation Frequency: 50/60Hz.
Inherently Short-circuit Proof.
Resins Class B(20,000h Testing to IEC 216).
Conform to EN61558/EN60950/UL1585/UL506.
100% Tested Production.
Custom designs are available.
Electrical Parameters:
| Part No. | Pri. Voltage | Sec. Voltage | Sec. Current | No-load Voltage | Ambient Temp. | Rated Power | Weight(KG) |
| EC3001 | 230V | 6V | 167mA | 8.6V | T 70/B | 1VA | 0.0715 |
| EC3002 | 230V | 7.5V | 133mA | 10.8V | T 70/B | 1VA | 0.0715 |
| EC3003 | 230V | 9V | 111mA | 12.9V | T 70/B | 1VA | 0.0715 |
| EC3004 | 230V | 10V | 100mA | 13.5V | T 70/B | 1VA | 0.0715 |
| EC3005 | 115V | 6V | 167mA | 8.6V | T 70/B | 1VA | 0.0715 |
| EC3006 | 115V | 7.5V | 133mA | 10.8V | T 70/B | 1VA | 0.0715 |
| EC3007 | 115V | 9V | 111mA | 12.9V | T 70/B | 1VA | 0.0715 |
| EC3008 | 115V | 10V | 100mA | 13.5V | T 70/B | 1VA | 0.0715 |
| EC3009 | 115V | 12V | 83mA | 17.2V | T 70/B | 1VA | 0.0715 |
| EC3010 | 115V | 15V | 67mA | 21.6V | T 70/B | 1VA | 0.0715 |

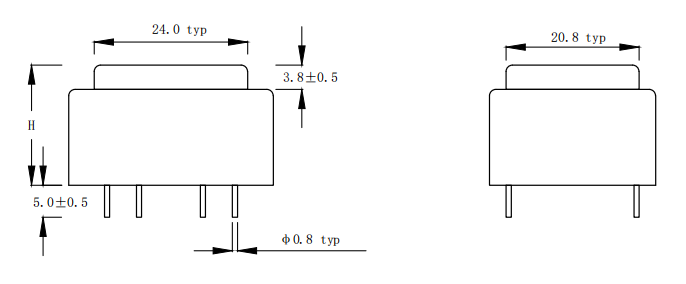

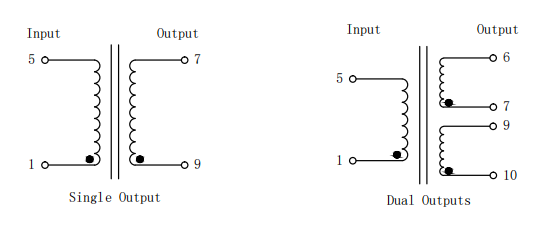

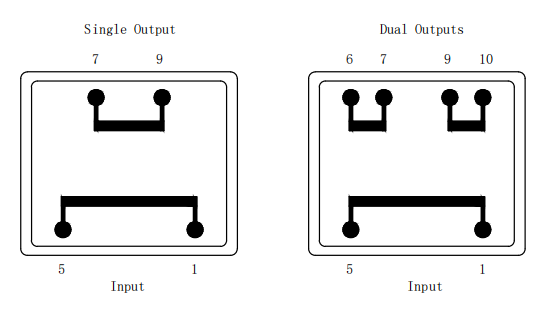

Electrical Schematic:
