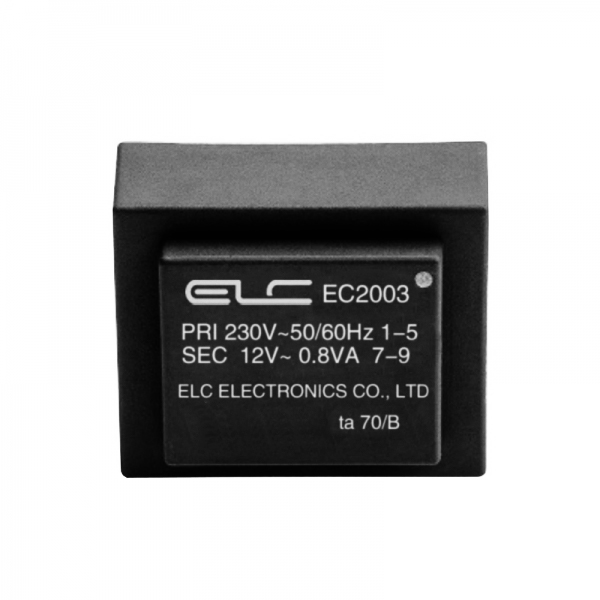

Encapsulated Transformer EC20
Features:
Conform to UL/CE Safety Standards.
Temperature Class: B(130℃), can be designed Class H(180℃).
Ambient Temperature: 70℃.
Vacuum Potting.
Material Flammability Classification UL94V-0.
Dielectric Strength 4200Vrms.
Operation Frequency: 50/60Hz.
Inherently Short-circuit Proof.
Resins Class B(20,000h Testing to IEC 216).
Conform to EN61558/EN60950.
100% Tested Production.
Custom designs are available.
Electrical Parameters:
| Part No. | Pri. Voltage | Sec. Voltage | Sec. Current | No-load Voltage | Ambient Temp. | Rated Power | Weight (KG) |
| EC2001 | 230V | 6V | 58V | 9V | T 70/B | 0.35VA | 0.025 |
| EC2002 | 230V | 9V | 39V | 13.5V | T 70/B | 0.35VA | 0.025 |
| EC2003 | 230V | 12V | 29V | 17.9V | T 70/B | 0.35VA | 0.025 |
| EC2004 | 230V | 15V | 23V | 22.4V | T 70/B | 0.35VA | 0.025 |
| EC2005 | 115V | 6V | 58V | 9V | T 70/B | 0.35VA | 0.025 |
| EC2006 | 115V | 9V | 39V | 13.5V | T 70/B | 0.35VA | 0.025 |
| EC2007 | 115V | 12V | 29V | 17.9V | T 70/B | 0.35VA | 0.025 |
| EC2008 | 115V | 15V | 23V | 22.4V | T 70/B | 0.35VA | 0.025 |
| EC2009 | 115V | 18V | 19V | 26.8V | T 70/B | 0.35VA | 0.025 |
| EC2010 | 115V | 24V | 15 | 35.8V | T 70/B | 0.35VA | 0.025 |

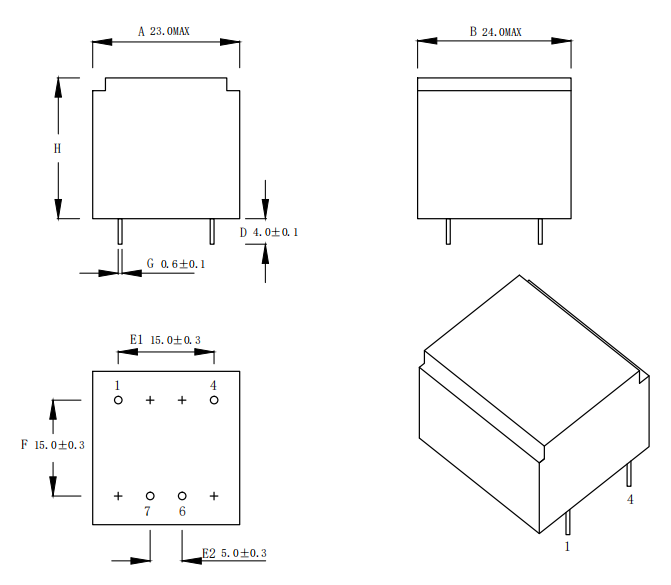

Outline Dimensions:

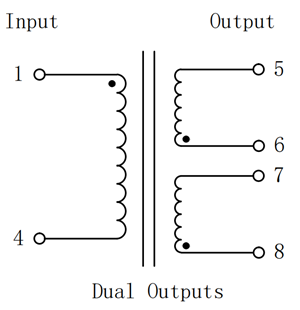

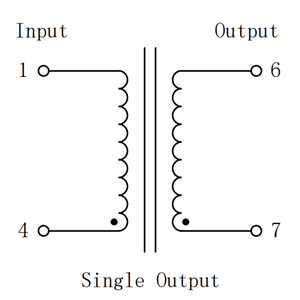

Electrical Schematic:
