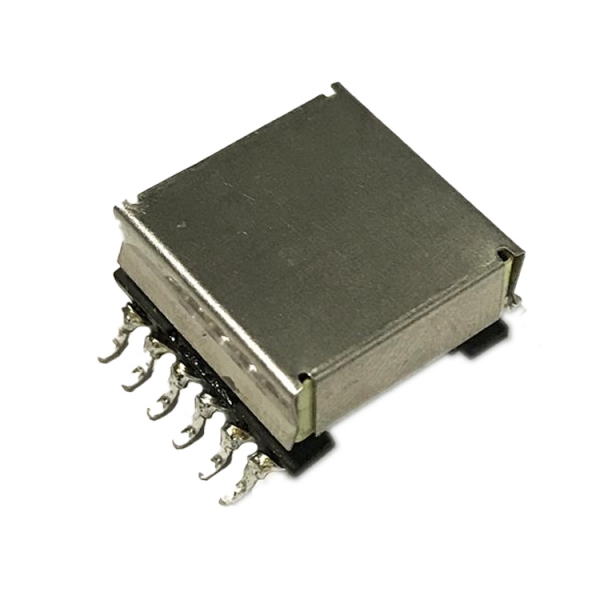

No-Opto Flyback Transformer YX907
No-Opto Flyback Transformer YX907
Features:
Input Voltage: 42V-60V.
Output Voltage: 24V.
Output Current: 2.1A.
IC Vendor: Texas Instrument.
Flyback transformer.
RoHS Compliant.
Operating Temperature -40°C to +105°C.
Storage Temperature -40°C to +85°C.
Electrical Parameters:
| Turns Ratio: | PIN 1-3 : PIN 5-6 = 2.50±3%:1 |
| PIN 1-3 : PIN 12,11,10-9,8,7 = 1.25±3%:1(PIN12-11-10,9-8-7 Short) | |
| Inductance: | PIN 1-3 = 65.0uH ±10% @ 100KHz/0.1V |
| Leakage Inductance: | PIN 1-3 = 750.0nH Max. @ 100KHz/0.1V (PIN 12-11-10-9-8-7 Short) |
| DCR: | PIN 1-3 = 75 mohm Max. |
| PIN 5-6 = 280 mohm Max. | |
| PIN 12,11,10-9,8,7 = 75 mohm Max.(PIN12-11-10,9-8-7 Short) | |
| Hi-POT: | PRI. – SEC. = 1500VAC/60Hz/2S/1mA |
Dimension(Inches/mm)：

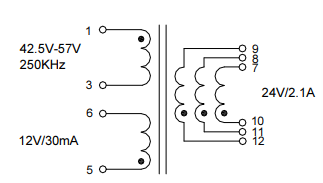

Electric Schmatic:
